New solar equipment 16 String 25A 600A Dc Solar Pv Combiner Box For Solar Panel
MGV-DCPV16 SMART WITHOUT ANTI-REVERSE PV COMBINER BOX
Delivery
FOB
minimum order
10 pieces
Supply Ability
10pieces / Week
Country of Origin
Zhejiang,China
Stock Time
10Day
Quantity:
US $296.00 - US $308.00 / pieces
New solar equipment 16 String 25A 600A Dc Solar Pv Combiner Box For Solar Panel
2 Input 1 Output Combiner Box2 Input 1 Output Combiner Box2 Input 1 Output Combiner Box2 Input 1 Output Combiner BoxDc Combiner Box 2in 1 Out 63aDc Combiner Box 2in 1 Out 63aDc Combiner Box 2in 1 Out 63aDc Combiner Box 2in 1 Out 63aDc Combiner Box 2in 1 Out 63aDc Distribution Box Combiner Box 2 In 1 OutDc Distribution Box Combiner Box 2 In 1 OutDc Distribution Box Combiner Box 2 In 1 OutDc Distribution Box Combiner Box 2 In 1 OutDc Distribution Box Combiner Box 2 In 1 Out2 Input 1 Output Combiner Box Dc Combiner Box 2in 1 Out 63a Dc Distribution Box Combiner Box 2 In 1 Out

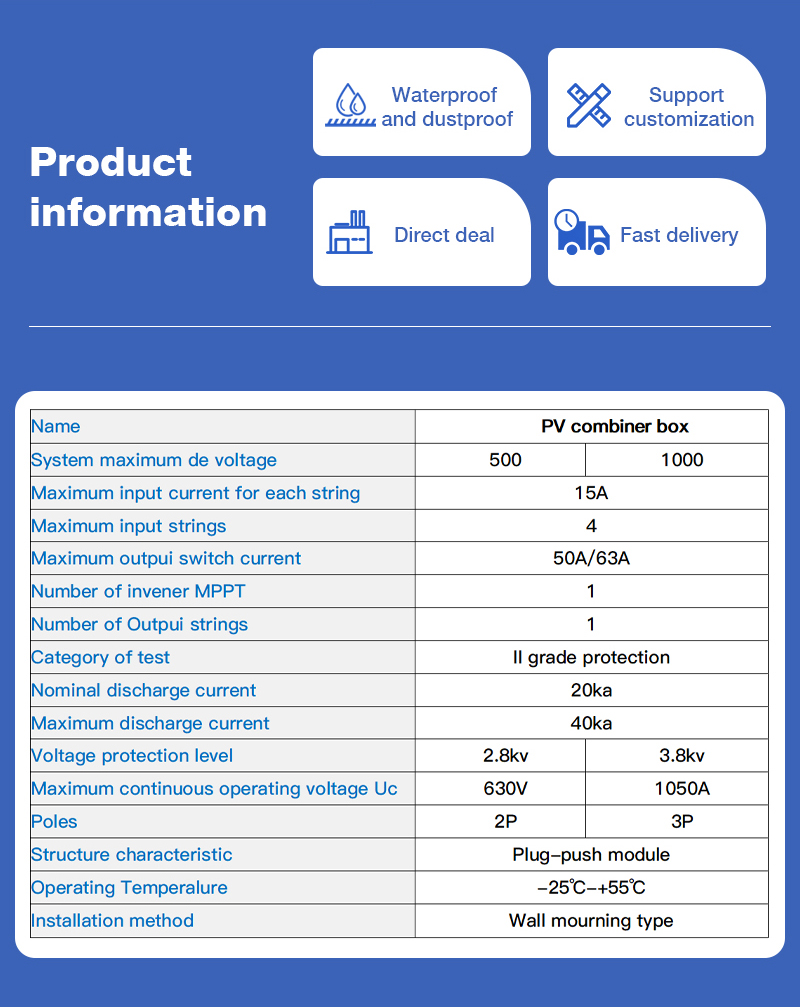

| Model | MGV-DCPV16 |
|---|---|
| Sytem DC Voltage | 1000V |
| Each Input Current | 15A |
| Number of Input | 16 Strings |
| Max. Output Current | 240A |
| Number of Output | 1 |

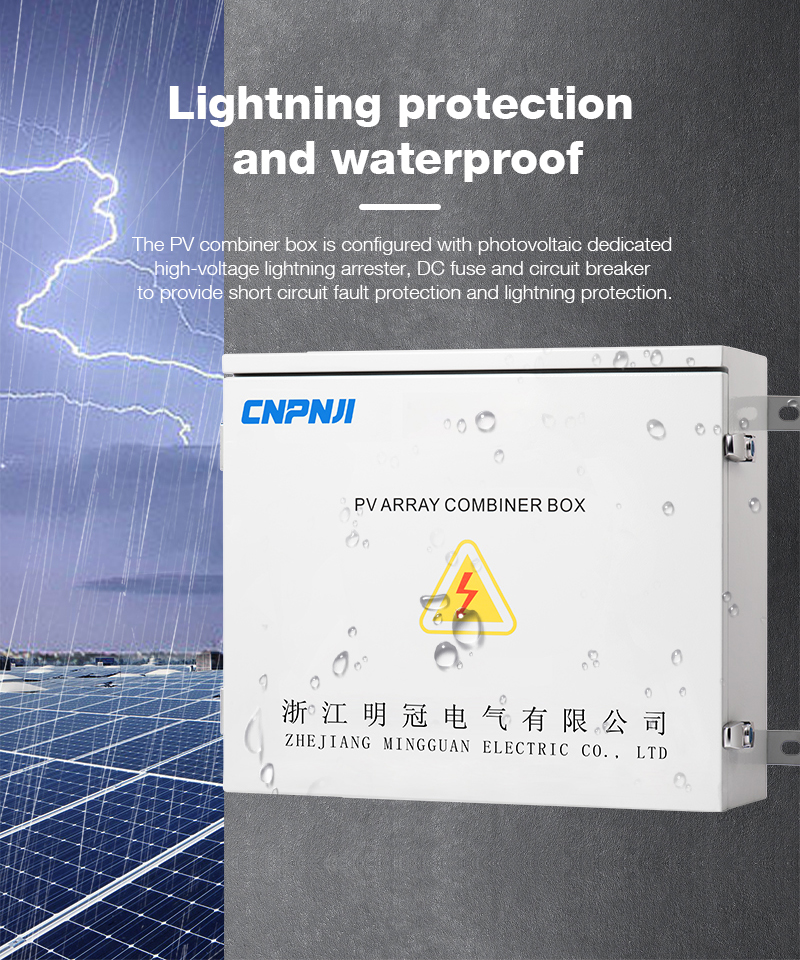

| Lightning Protection | |
| Test Category | II |
| Nominal Discharge Current | 20kA |
| Max. Discharge Current | 40kA |
| Voltage Protection Level | 3.8kV |
| Max. Voltage | 1000V |
| Number of Poles | 3P |
| Structural Characteristics | Pluggable module |
| Protection Level | IP65 |
| Output Switch | DC circuit breaker (standard)/DC isolator switch (optional) |
| MC4 Connector | Optional |

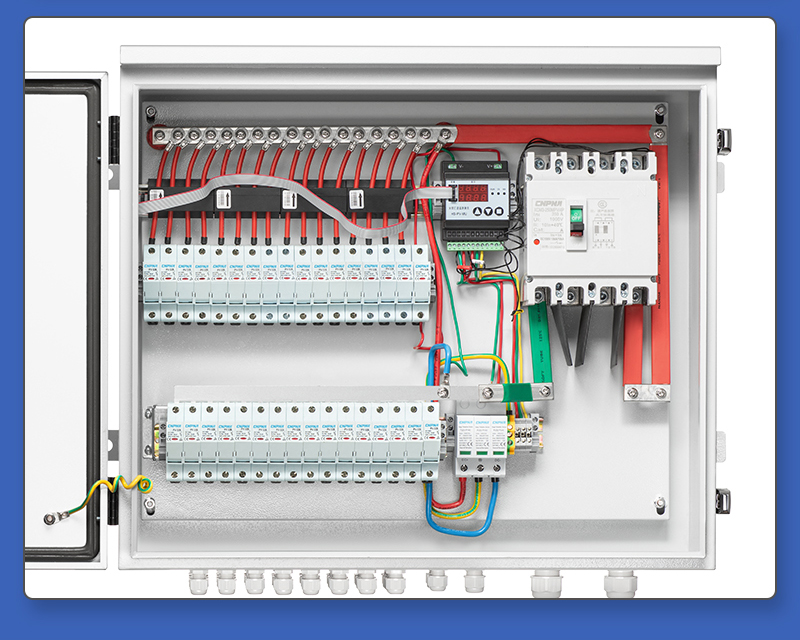

| PV DC Fuse | Standard |
| PV DC SPD | Standard |
| Monitor Module | Yes |
| Diode | No |
| Heat Dissipation Plate | No |

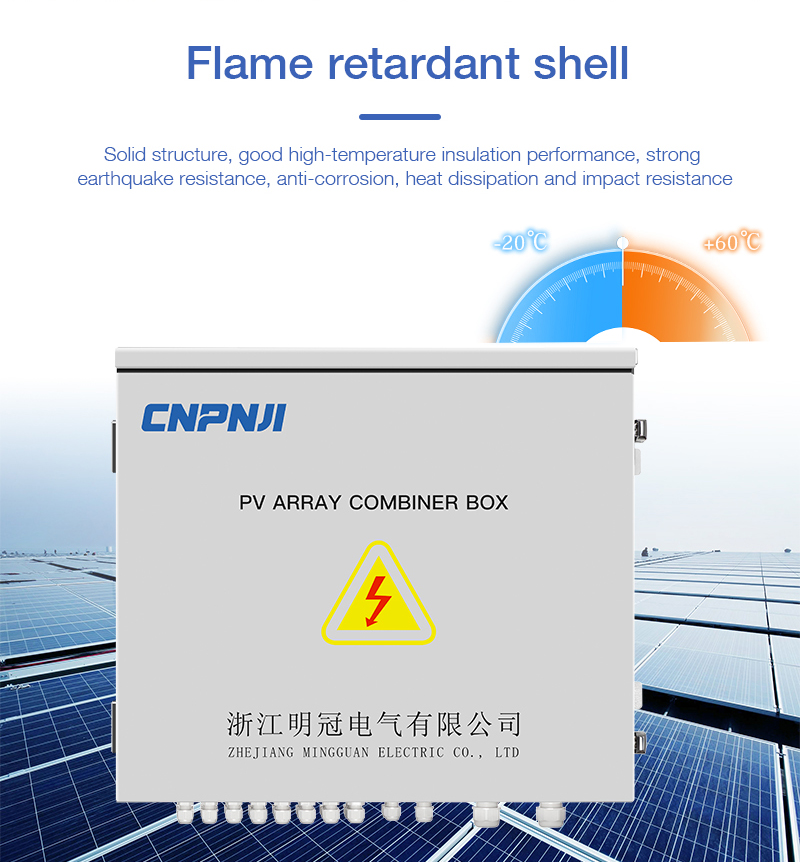

| Shell Material | Cold rolled steel (Optional) |
| Installation Mothed | Wall-mounted |
| Working Temperature | -25°C '~+55°C |
| Altitude | 2000M |
| Permissible RH | 0-95%, no condensation |
