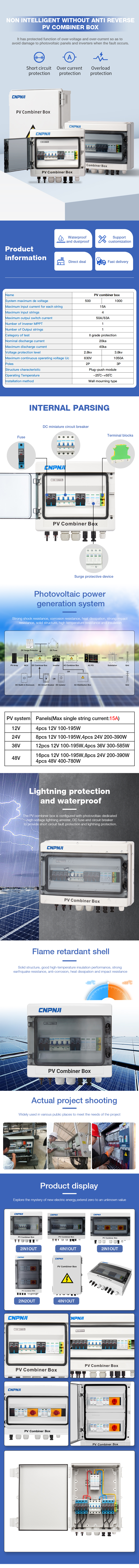

customized waterproof 8input 15A solar pv combiner box for 8 strings solar panel
MGV-PV8
minimum order
10 pieces
Supply Ability
10pieces / Week
Country of Origin
Zhejiang,China
Stock Time
10Day
Quantity:
US $135.00 - US $141.00 / pieces
2 4 6 8 12 Strings Pv Dc Combiner Box2 4 6 8 12 Strings Pv Dc Combiner Box2 4 6 8 12 Strings Pv Dc Combiner Box2 4 6 8 12 Strings Pv Dc Combiner Box2 4 6 8 12 Strings Pv Dc Combiner Box2 4 6 8 12 Strings Pv Dc Combiner Box2 4 6 8 12 Strings Pv Dc Combiner Box2 4 6 8 12 Strings Pv Dc Combiner BoxJunction Box Ip65 1000vJunction Box Ip65 1000vJunction Box Ip65 1000vJunction Box Ip65 1000vJunction Box Ip65 1000vJunction Box Ip65 1000vJunction Box Ip65 1000vJunction Box Ip65 1000vJunction Box Ip65 1000vJunction Box Ip65 1000vSolar Panel Junction BoxSolar Panel Junction BoxSolar Panel Junction BoxSolar Panel Junction BoxSolar Panel Junction BoxSolar Panel Junction BoxSolar Panel Junction BoxSolar Panel Junction BoxSolar Panel Junction BoxSolar Panel Junction Box
| Model | MGV-DCPV8 |
|---|---|
| Sytem DC Voltage | 1000V |
| Each Input Current | 15A |
| Number of Input | 8 Strings |
| Max. Output Current | 120A |
| Number of Output | 1 |
| Lightning Protection | |
| Test Category | II |
| Nominal Discharge Current | 20kA |
| Max. Discharge Current | 40kA |
| Voltage Protection Level | 3.8kV |
| Max. Voltage | 1000V |
| Number of Poles | 3P |
| Structural Characteristics | Pluggable module |
| Protection Level | IP65 |
| Output Switch | DC circuit breaker (standard)/DC isolator switch (optional) |
| MC4 Connector | Optional |
| PV DC Fuse | Standard |
| PV DC SPD | Standard |
| Monitor Module | No |
| Diode | No |
| Heat Dissipation Plate | No |
| Shell Material | Cold rolled steel |
| Installation Mothed | Wall-mounted |
| Working Temperature | -25°C '~+55°C |
| Altitude | 2000M |
| Permissible RH | 0-95%, no condensation |
