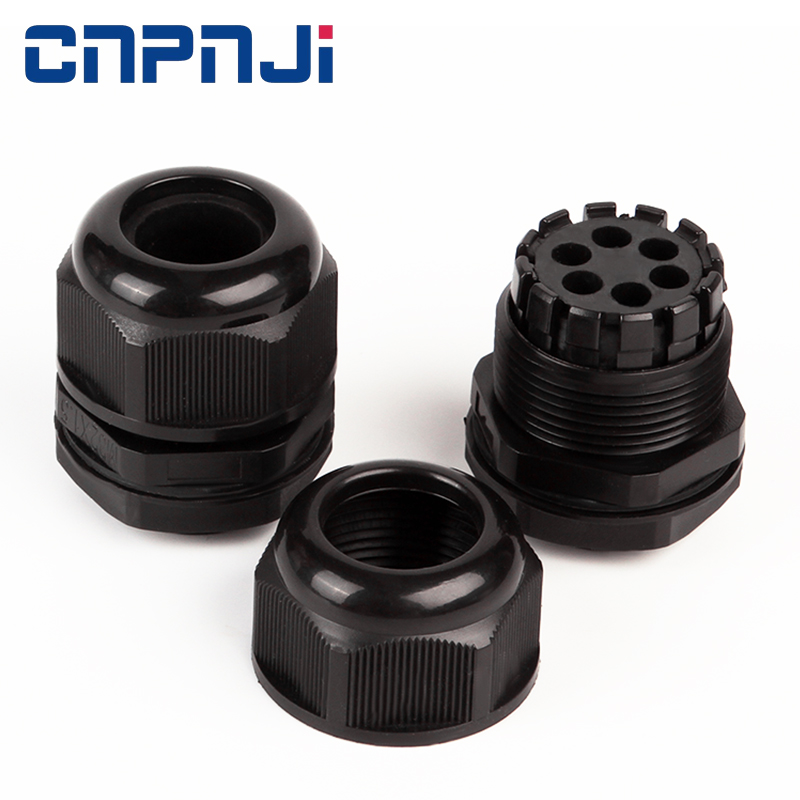

6 Holes EPDM Rubber Seals Washer Anti WeakAcid Multiple Wiring Insert Polyamide Cable Glands for electric protection
M25*1.5
minimum order
100 pieces
Supply Ability
1.0E7pieces / Quarterly
Country of Origin
Shanghai, Ningbo, or Any Port In China
Quantity:
USD0.12 - USD0.98 / pieces
- Color:Black White
- Product name:Nylon cable gland
- Working Temperture:Static State:-40 -110 Dynamic:-20 -80
- Seal Material:NBR EPDM Rubber
- Thread Type:Metric PG NPT
- Usage:Lock Cable Tight
- Application:Distribution Box
- Feature:Cable Protection
- Certificate:REACH CE RoHS IP68 UL
- Advantages:Fast Delivery
- Protection Level:IP68
- Material:Nylon
- Place of Origin:CN;ZHE
- Brand Name:CNPNJI
- Model Number:M25*1.5
- Size:MGA25-H6-5.3

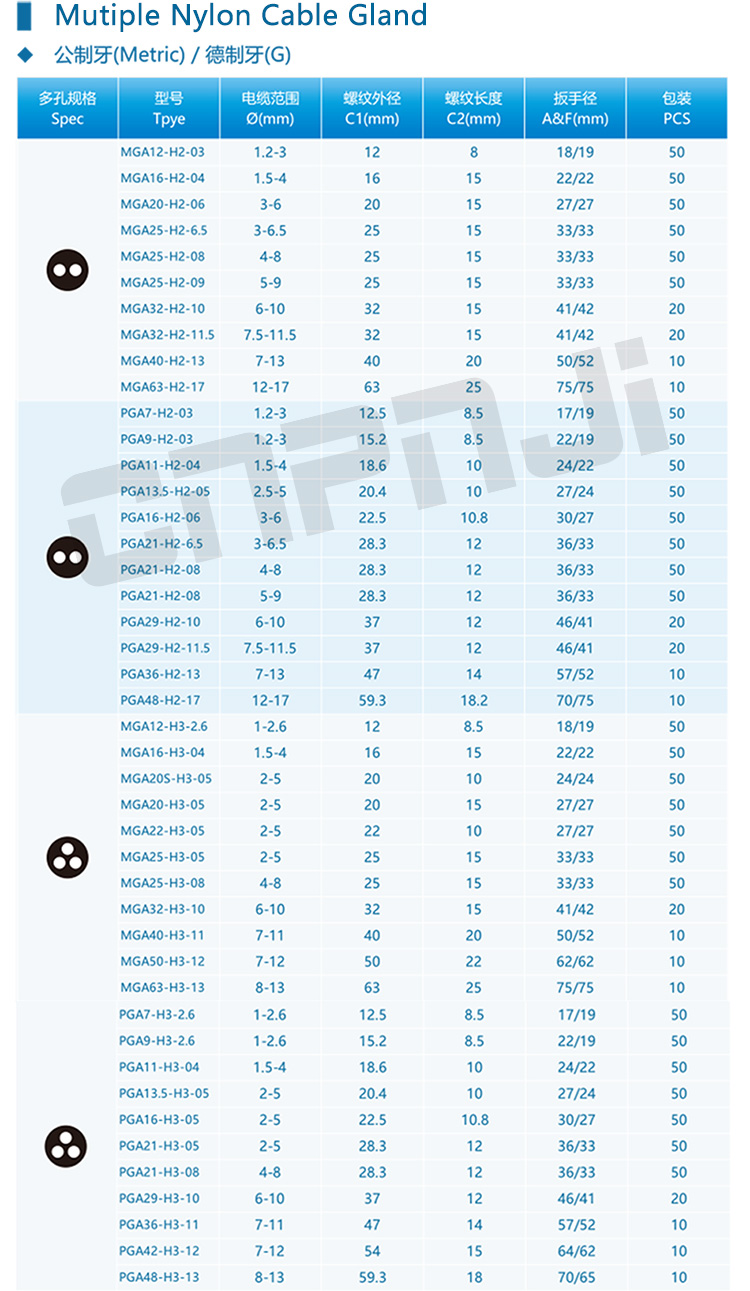

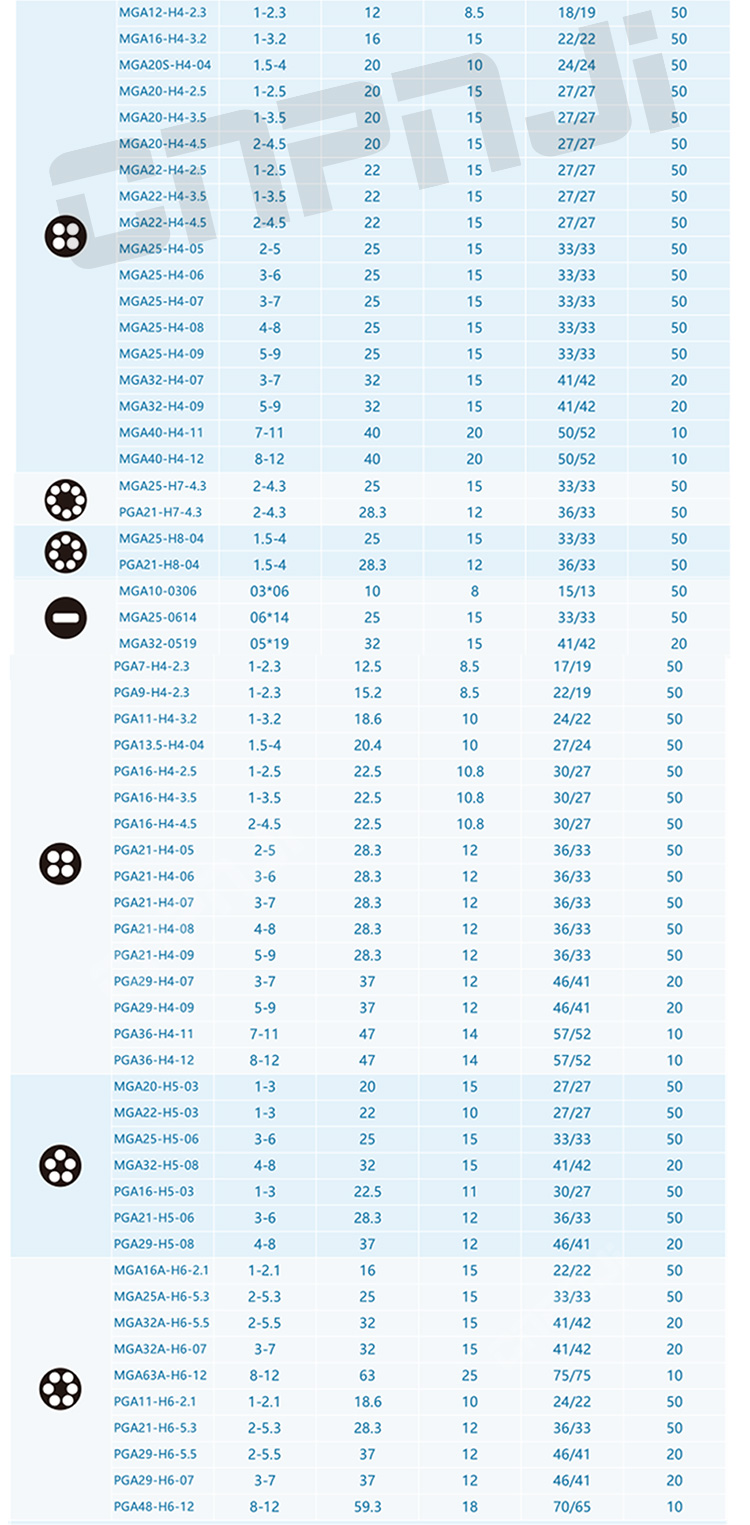

| Product Picture | M25 Multi-holes Nylon Cable Glands | |
 | Thread Type | Metric in compliance with EN60423 |
| Thread Size | M25*1.5 | |
Model number | MGA25-H6-5.3 | |
Cable Range (mm) | 2-5.3 | |
| Thread O.D(mm) | 25 | |
| Thread Length(mm) | 15 | |
| Spanner Diameter (mm) | 33 | |
| Color | Black /L.Gray /Customized colors | |

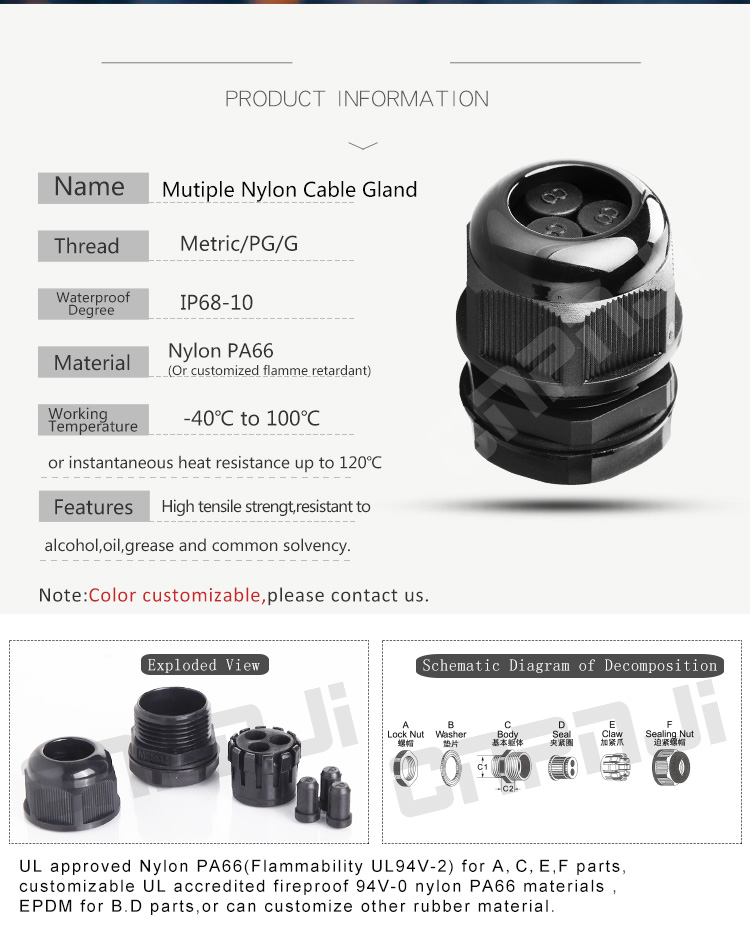

| Material | Nylon PA66( Flammability UL94V-2 ) for parts A,C,E,F, pls contact us if you customize UL94V-0; EPDM rubber for parts B,D, support for cumstomized cold and heat resistant rubber material. | |
| IP Class | IP68-10 | |
| Working temperature | -40°C~100°C (-40°F~212°F) | |

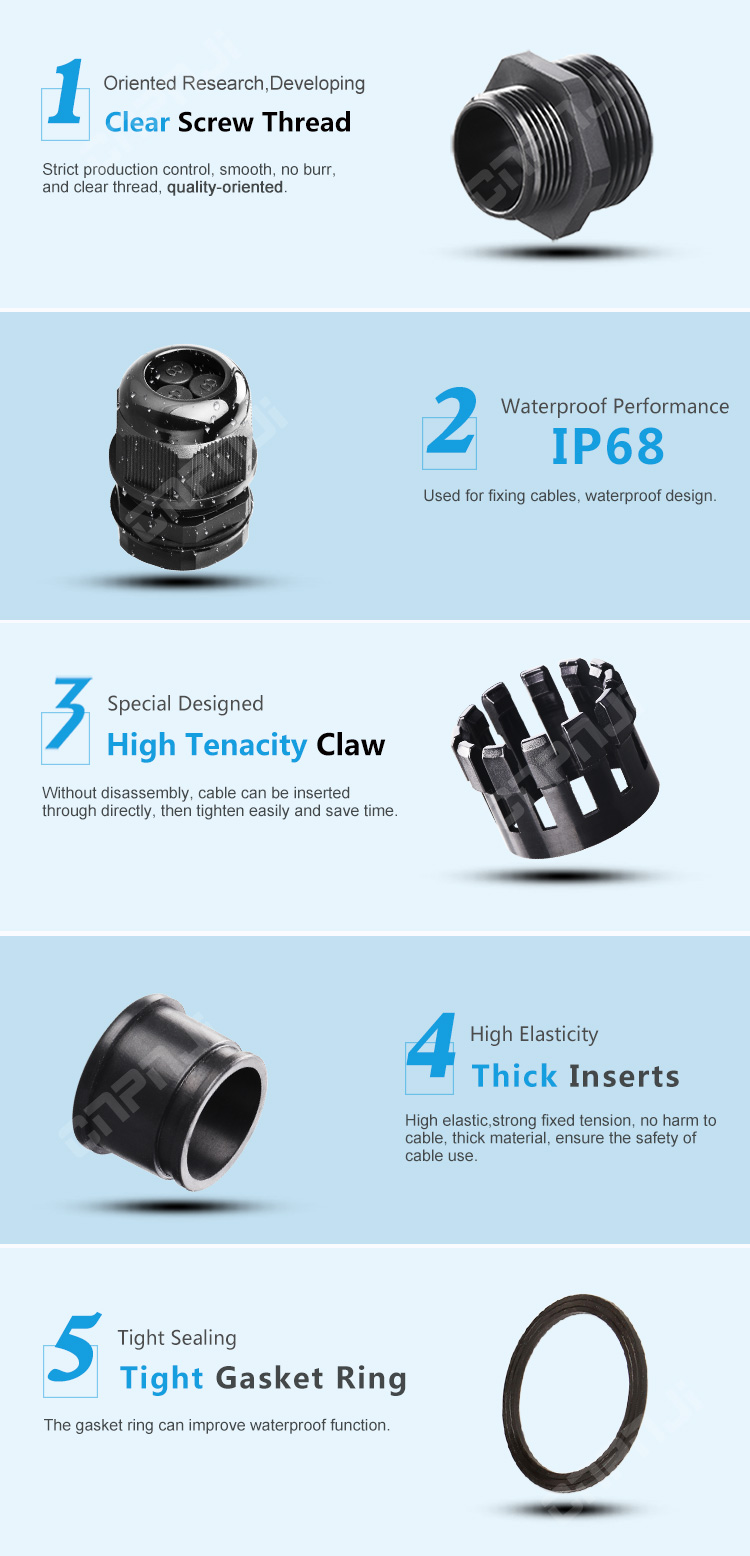

| Application | The muti-holes nylon cable glands allow to entry several cables simultaneously, and keep good watertight performance, which help us reduce the cost and assembly time. This cable gland is designed with special inserted seal and clamping claw , high tension resistance, high waterproof performance, dustproof, salt and weak acid resistance in the cable protection system. | |
| Certification | CE/RoHS/SGS/IP68/UL(material) certified | |
| MOQ | Small order can be accepted | |
| Payment term | T/T / Cash / WestUnion / Paypal | |
| Delivery Time | 5working days if in stock | |
| Packaging | 15/30/50/100PCS per bag with label,export standard carton | |
| Design ability | We can supply sample, OEM & ODM is welcomed (Design, Engineering, Photographing, Sample, Production) | |
Company Information

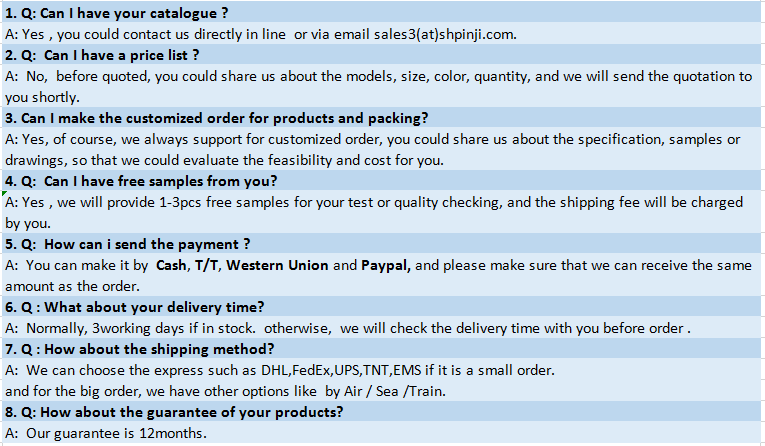

FAQ
