Metric Thread Type High Performance IP68-10 Nylon Sealing Screw Cover Blind Plugs with Screw Thread
M32*1.5-SP
minimum order
500
Quantity:
USD0.06 - USD1.02
- Reminding:this plugs is with sealing ring. pls contact us if you want lock nut
- Color:Black&white
- Product name:Blind Plugs
- Thread Type:Metric PG NPT
- Certificate:CE RoHS IP68
- Usage:Plugging Holes Reserved
- Advantages:Screw Plug
- Fire Proof Level:94V-2/V-O
- Sealing:NBR Silicone Rubber
- Body Material:ROHS Nylon66
- Protection Level:IP68
- Material:Nylon
- Place of Origin:CN;ZHE
- Brand Name:CNPNJI
- Model Number:M32*1.5-SP
- Size:M32*1.5

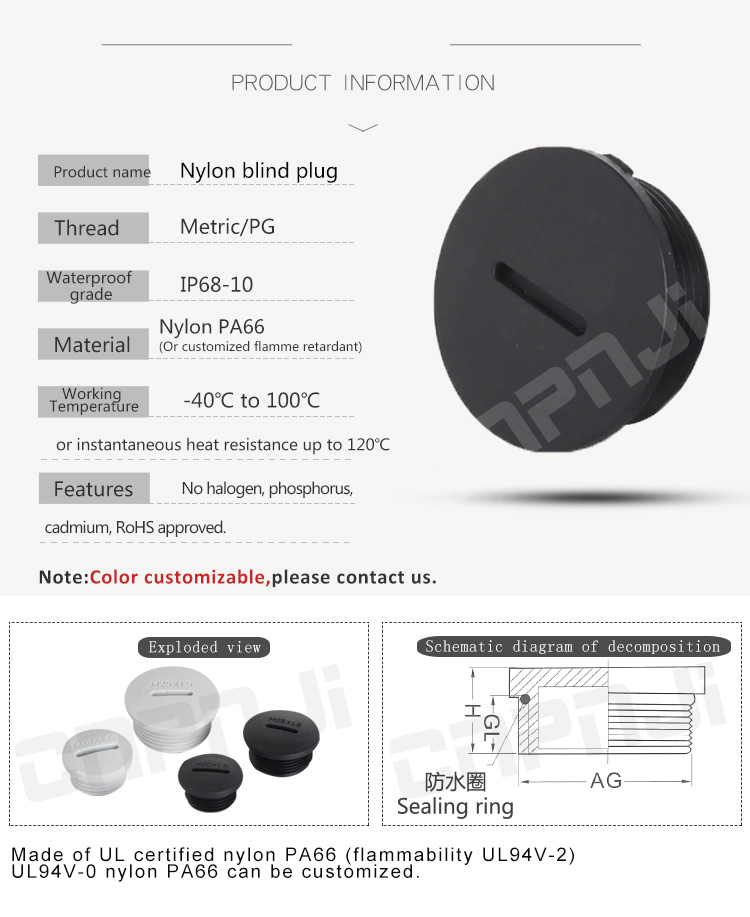

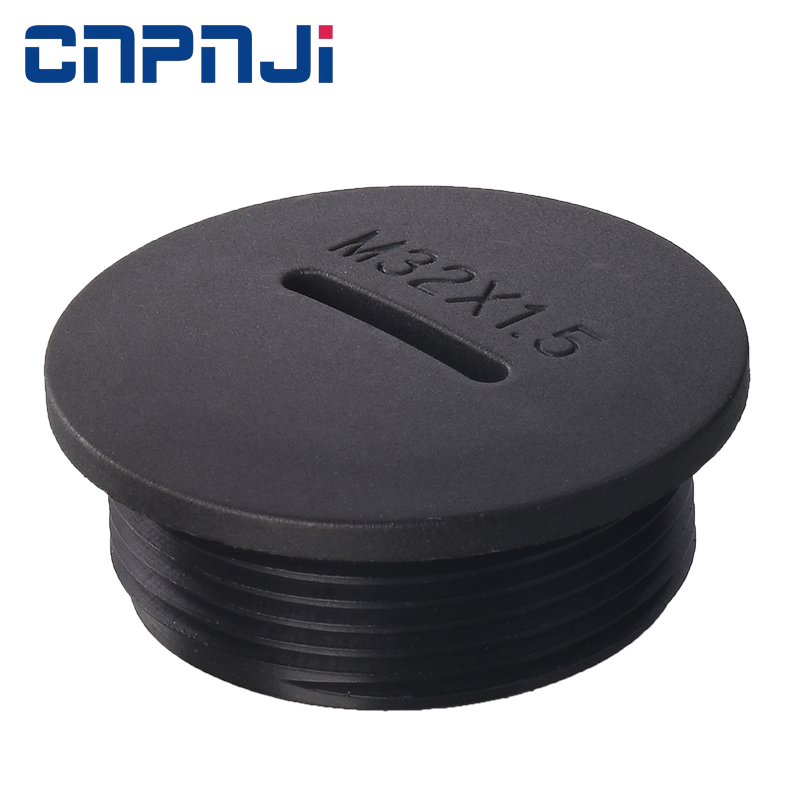

| Product Picture | M32 Nylon Sealing Screw Cover | |

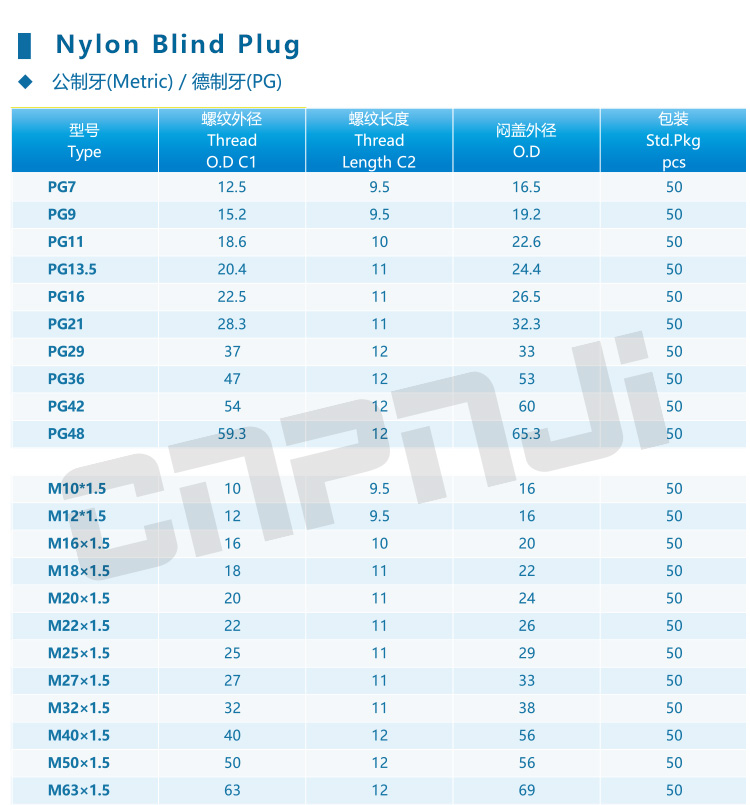

 | Thread Type | Metric thread in compliance with EN60423 |
| Thread Size | MG32 | |
Model number | MG32*1.5-SP | |
Plus O.D(mm) | 38 | |
| Thread O.D(mm) | 32 | |
| Thread Length(mm) | 11 | |
| Color | Black /L.Gray /Customized colors | |
| Material | Nylon PA66( UL94V-2), support for customized ULP4-V0 | |
| IP Class | IP68-10 | |
| Working temperature | -40°C~100°C (-40°F~212°F) | |
| Application | The sealing plug is used for closing the spare holes in the housing wall or junction boxes. It is free from halogen, phosphorus, cadmium, and approved by RoHS test. | |
| Certification | CE/RoHS/SGS/IP68/UL(material) certified | |
| MOQ | Small order can be accepted | |
| Payment term | T/T / Cash / WestUnion / Paypal | |
| Delivery Time | 5working days if in stock | |
| Packaging | 100/200/500/1000PCS per bag with label,export standard carton | |
| Design ability | We can supply sample, OEM & ODM is welcomed (Design, Engineering, Photographing, Sample, Production) | |
